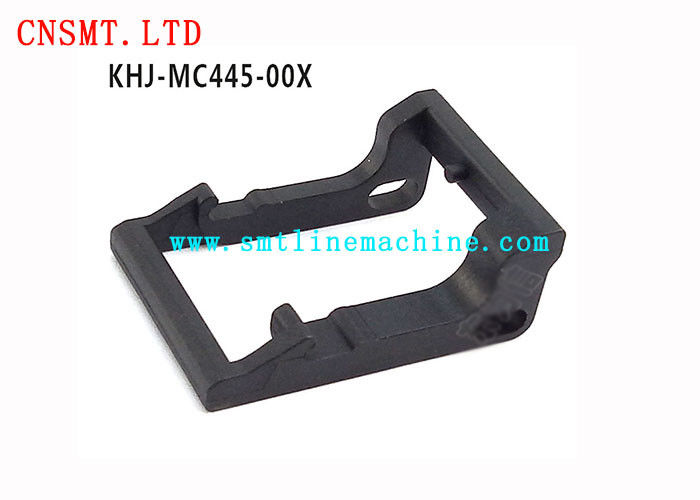

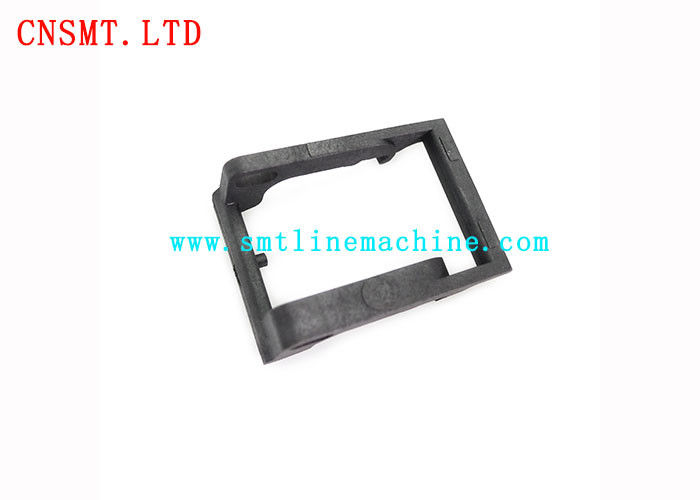

KHJ-MC445-01 LEVER TAPE GUIDE F SS24MM presser cover front button Feeder press cover hook KHJ-MC445-00
KHJ-MC445-01 LEVER TAPE GUIDE F SS24MM presser cover front button Feeder press cover hook KHJ-MC445-00
Specification:
| KHJ-MC145-00 KHJ-MC145-01TAPE GUIDE F 8MM electric Feida gland insurance buckle |
| KHJ-MC245-01. LEVER, TAPE GUIDE SS12mm/16mm electric feeder hook |
| KHJ-MC245-00 LEVER, TAPE GUIDE F SS12/16mm safety buckle Electric Feida accessories |
| KHJ-MC445-00 01 LEVER, TAPE GUIDE F SS24MM electric Feida presser cover front button |
| KHJ-MC545-00 LEVER, TAPE GUIDE SS32mm safety buckle SS electric feeder accessories |
| KHJ-MC645-00 LEVER, TAPE GUIDE SS44mm Insurance buckle SS electric feeder accessories |
| KHJ-MC745-00 LEVER, TAPE GUIDE KHJ-MC745-01 56MM gland insurance buckle |
| KHJ-MC103-02 BLOCK,FRONT 1 |
| 2 KHJ-MC104-00 RAIL,UNDER 1 |
| 3 KHJ-MC105-00 PIN,TAIL 1 |
| 4 KHJ-MC10F-00 SCREW,FLAT HEAD 2 |
| 5 KHJ-MC53N-00 PIN,DOWEL 1 |
| 6 KHJ-MC16J-00 SCREW,FLAT HEAD 11 |
| 7 KHJ-MC281-00 HANDLE 1 |
| 8 KHJ-MC182-00 TENSION,WIRE 1 1 |
| 9 KHJ-MC183-00 SPACER,TENSION 1 1 |
| 10 KHJ-MC184-00 SPACER,TENSION 2 1 |
| 11 KHJ-MC286-00 WIRE,UNCLAMP 1 |
| 12 KHJ-MC187-00 SPRING,TENSION 1 |
| 13 KHJ-MC289-00 PIN,CLAMP 1 |
| 14 KHJ-MC18A-00 SPRING,CLAMP 1 |
| 15 KHJ-MC28B-00 COVER,WIRE 1 1 |
| 16 KHJ-MC18F-00 CIRCLIP (E) 1 |
| 17 KHJ-MC48G-00 SHAFT,HANDLE SUPPORT 1 |
| 18 KHJ-MC28H-00 CLAMP LEVER ASSY. 1 |
| 19 90189-05J056 NUT,HEXAGON 1 |
| 20 90440-01J030 CIRCLIP(E) 1 |
| 21 91317-03008 BOLT HEX.SOCKET HEAD 4 |
| 22 91317-05012 BOLT HEX.SOCKET HEAD 1 |
| 23 92A08-03303 SET SCREW M3X3 5 |
| 24 99480-03010 PIN,PARALLEL 2 |
| 25 99480-04018 PIN,PARALLEL 1 |
| 26 99480-05012 PIN,PARALLEL 1 |
| 27 KHJ-MC10S-00 PIN,LOCATE 1 1 |
| 28 KHJ-MC10T-00 PIN,LOCATE 2 |
| KHJ-MC501-00 BODY,FEEDER 1 |
| 2 KHJ-MC502-00 COVER,FEEDER 1 |
| 3 KHJ-MC106-00 PLATE,UNDER 1 |
| 4 KHJ-MC206-00 PLATE,UNDER 1 |
| 5 KHJ-MC50C-00 SEAL,MAIN LABEL 1 |
| 6 KHJ-MC510-00 MOTOR, FEED 1 |
| 7 KHJ-MC532-00 SPROCKET 1 |
| 8 KHJ-MC534-00 GEAR,IDLE F1 1 |
| 9 KHJ-MC535-00 GEAR,IDLE F2 1 |
| 10 KHJ-MC53R-00 GEAR,IDLE F3-1 1 |
| 11 KHJ-MC53S-00 GEAR,IDLE F3-2 1 |
| 12 KHJ-MC537-00 GEAR,IDLE F4 1 |
| 13 KHJ-MC538-00 GEAR,DRIVEN 1 |
| 14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3 |
| 15 KHJ-MC53E-00 BOLT HEX.S/H LOW 1 |
| 16 90990-08J021 SCREW,STAD 2 |
| 17 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1 |
| 18 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1 |
| 19 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1 |
| 20 KHJ-MC53L-00 COVER,FEED GEAR 1 |
| 21 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1 |
| 22 KHJ-MC53N-00 PIN,DOWEL 1 |
| 23 KHJ-MC561-00 BOX,TOP TAPE 1 |
| 24 KHJ-MC562-00 COVER,TOP TAPE BOX 1 |
| 25 KHJ-MC165-00 MAGNET,TAIL 1 |
| 26 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1 |
| 27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2 |
| 28 KHJ-MC56U-00 TAIL COVER ASSY. 1 |
| 29 90166-02JA03 SCREW,PAN HEAD 1 |
| 30 90115-2AJ008 BOLT HEX.SOCKET HEAD 3 |
| 31 91312-03012 BOLT,HEX.SOCKET HEAD 2 |
| 32 91312-03022 BOLT,HEX.SOCKET HEAD 5 |
| 33 91312-03030 BOLT,HEX.SOCKET HEAD 1 |
| 34 91317-03020 BOLT HEX.SOCKET HEAD 6 |
| 35 91317-03030 BOLT HEX.SOCKET HEAD 1 |
| 36 98707-03006 SCREW,FLAT HEAD 4 |
| 37 99480-03010 PIN,PARALLEL 8 |
| 38 KHJ-MC56U-S0 PARTS, TAIL COVER 1 |
| 39 KHJ-MC562-S0 PARTS, BOX COVER |
| KHJ-MC50C-00 SEAL,MAIN LABEL 1 |
| 2 KHJ-MC532-00 SPROCKET 1 |
| 3 KHJ-MC53B-00 BUSH,SPROCKET 1 |
| 4 KHJ-MC53E-00 BOLT HEX.S/H LOW 1 |
| 5 KHJ-MC541-00 TAPE GUIDE ASSY. 1 |
| 5-1 KHJ-MC541-01 TAPE GUIDE ASSY. 1 (2008/5/28) OK |
| 5-2 KHJ-MC541-02 TAPE GUIDE ASSY. 1 (2009/3/2) NG |
| 6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1 |
| 7 KHJ-MC545-00 LEVER,TAPE GUIDE F 1 |
| 7-1 KHJ-MC545-01 LEVER,TAPE GUIDE F 1 (2009/3/2) NG |
| 8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 |
| 8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG |
| 9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1 |
| 9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG |
| 10 KHJ-MC54E-00 SHAFT,LEVER 1 |
| 11 KHJ-MC167-00 COVER,MENBRANE 1 |
| 12 90990-09J008 SCREW,FLAT HEAD 2 |
| 13 KHJ-MC26K-00 COVER,MENBRANE 2 1 |
| 14 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1 |
| 15 KHJ-MC1AA-00 SWITCH,OPERATION 1 |
| 16 90990-54J003 SCREW,PAN HEAD TAP. 2 |
| 17 92A08-03303 SET SCREW M3X3 2 |
| 18 99480-04028 PIN,PARALLEL 1 |
| 19 90K41-000770 SEAL,HIGH TEMP. |
