Automatic Solder Paste Printer Standard Smt Sencil Printer Equipment 1000KG A5 Model

Automatic Solder Paste Printer Standard Smt Sencil Printer Equipment 1000KG A5 Model

  • High Light

    smt stencil machine

    ,

    solder paste printer

  • Brand
    Right
  • MODEL
    A6
  • Weight
    1003kg
  • Lead Time
    1-2days
  • Packing
    Wooden BOX
  • PAYMENT TERM
    T/T, Paypal, Westernunion Are All Allowed
  • Delivery Term
    Exw Fob Cif...
  • Machine Dimensions
    1233(L)×1355(W)×1540(H)mm
  • Control Method
    PC Control
  • Power Input
    AC:220±10%,50/60HZ1F3KW
  • Place of Origin
    CHINA
  • Brand Name
    Right
  • Certification
    CE
  • Model Number
    A6
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    vacuum woodenbox
  • Delivery Time
    5-7 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10pcs/day

Automatic Solder Paste Printer Standard Smt Sencil Printer Equipment 1000KG A5 Model

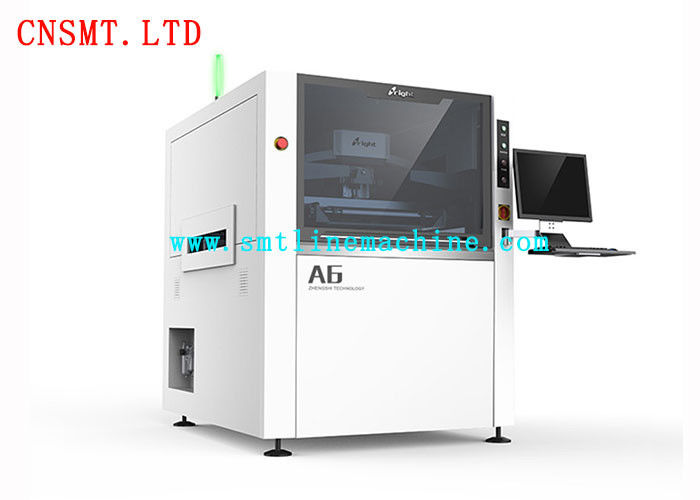

Zhengshi A6 Model Full-auto solder paste printer PCB Max Size 510X340mm with squeegee

Zhengshi A6 Model Full-auto solder paste printer PCB Max Size 510X340mm with squeegee


Specification:


  Model A6
Item
Screen Frames Min Size 370X470mm
  Max Size 737X737mm
  Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 510X340mm
PCB Thickness 0.4~6mm
PCB Warpage <1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location Support System Magnetic Pin/Up-down table adjusted/supportblock
PCB by hand Magnetic thimble / adjustable jacking platform / contour block
  Clamping System side clamping,vacuum nozzle
Print head Two independent motorised printheads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
Machine
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <7s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1220(L)X1355(W)X1500(H)mm
Machine Weight Approx:1000Kg



KM8-M5109-02X MONITOR 15"COLOR 1
KW3-M5150-01X KEYBOARD J
KW3-M5150-11X KEYBOARD E
KW3-M5169-00X MOUSE 1
2002.5
KGB-M1391-00X MOUSE PAD 1
2002.5
3 KW7-M5126-00X SAFETY SWICTH 2
4 KV7-M4899-XXX LIGHT 1 ASSY 1
5 KH1-M5138-01X SWITCH EMG. ASSY. 2
6 KM5-M6554-10X MAIN SWITCH 1
7 KG7-M530H-01X FLOPPY DISK DRIVE 1
8 KM5-M4580-02X I/O CONV. UNIT ASSY. 1
9 KGA-M4550-10X CONNECTION BOARD KIT 1
2001.03 M130059
10 KV8-M4570-01X I/O HEAD UNIT ASSY
KV8-M4570-01X I/O HEAD UNIT ASSY 1 2002.5 M180054
2 KM5-M4580-02X I/O CONV. UNIT ASSY 2
KM5-M5840-04X SERVO BOARD ASSY.
2 KJ0-M5810-H4X DRIVER BOARD ASSY. 1 for YTF only
3 KJ0-M5810-G4X DRIVER BOARD ASSY. 1 for WATS only
4 KJ0-M5810-F4X DRIVER BOARD ASSY. 1 for ATS-M only
KM8-M5119-10X MONITOR 1
2 KH1-M5111-
3
4 KH1-M5180-20X PROG.UNIT ASSY 1 YPU
5 KH4-M668R-00X HARNESS 8-11 2 LIMIT SWITCH
6 KV7-M4899-10X LIGHT 1ASSY
KGA-M4110-00X BOX ASSY. C/R 1
2 KGA-M4510-00X MOTHER BOARD ASSY. 1
3 KM5-M5840-04X SERVO BOARD ASSY. 2
2003.12 M3Y0090
4 KW3-M4209-00X SYSTEM UNIT ASSY. 1
5 KJ0-M5810-L4X DRIVER BOARD ASSY. 1
6 KJ0-M5810-K4X DRIVER BOARD ASSY. 1
7 KM5-M5882-11X D. POWER ASSY. 1
8 KJ0-M4134-10X PANEL NO SERVO 1
9 KJ0-M4132-10X PANEL .NO DRIVER 1
10 KGA-M4185-10X FAN MOTOR ASSY 3
11 KGA-M5303-00X SW POWER DC5 1
12 KW7-M5303-10X SW POWER DC12 1
13 KGA-M53E2-00X TRANS 1 ASSY KGA 1
14 KV1-M441H-17X VISION UNIT ASSY. 1
2004.6 MA50089
15 KW3-M4220-10X APPLE BOARD ASSY. 1
16 KGA-M4136-10X PANEL, NO VISION 1
17 KW3-M4255-00X FLASH DISK 1
17-1 KGN-M4255-00X FLASH DISK 1 W/ ADAPTER
2002.9 M230020
17-2 KGN-M4255-20X FLASH DISK 1 W/O ADAPTER
2003.12 M3X0032
18 KW3-M4256-000 CD-ROM
KM5-M5840-02X SERVO BOARD ASSY. 1
2 KJ0-M5810-H2X DRIVER BOARD ASSY. 1 for YTF only
2-1 KJ0-M5810-H3X DRIVER BOARD ASSY 1 X1 M960067
3 KJ0-M5810-G2X DRIVER BOARD ASSY. 1 for ATS only
3-1 KJ0-M5810-G3X DRIVER BOARD ASSY

Automatic Solder Paste Printer Standard Smt Sencil Printer Equipment 1000KG A5 Model 0
