CNSMT Samsun SM421 SM431 Pick and place machine correspond to from 0603 microchips to 22mmIC components
Specification:
| Equipment introduction |
| Samsun SM421 placement machine features: |

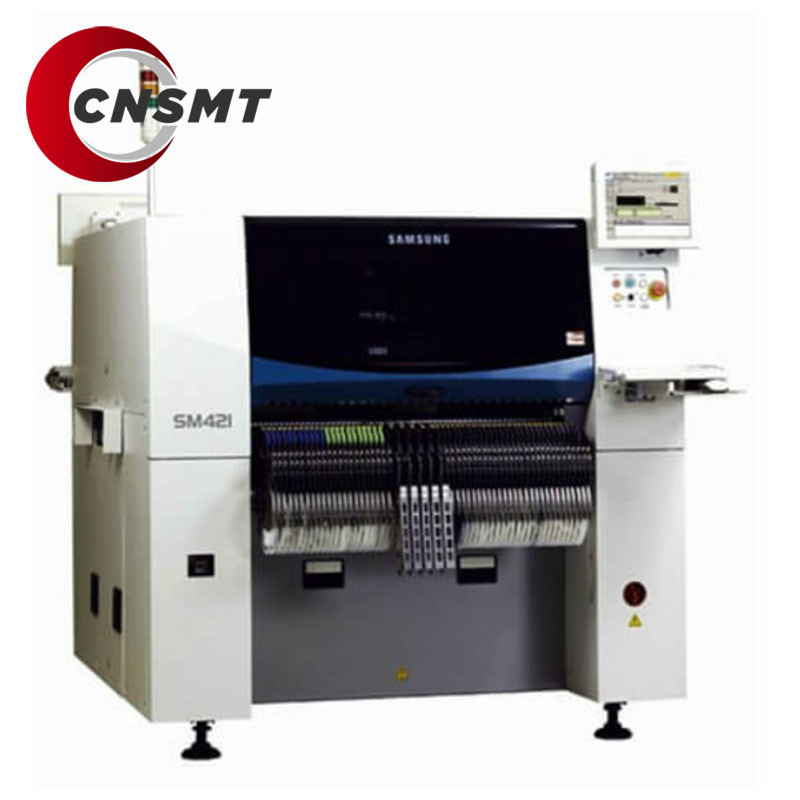

| 1) SM421 adopts the fast-installing Samsun patent On The Fly recognition system, which can correspond to from 0603 microchips to □22mmIC components. It also features high-pixel vision in the Stage Camera, which allows the recognition of 42mm, 0.4mm standard precision micro-pitch components with a 45mm camera. It can mount IC components with high precision of 30 microns, and also supports polygon recognition algorithms, making it easy to mount even components with complex shapes. The best performance-price ratio in the same class, the production capacity is 20-40% higher than that of the same class. New non-stop refueling feeder for improved efficiency, semi-electric operation, high stability and reliability. Easy operation, fast programming speed. Offline programming. The software such as line balance is fully functional. It has Chinese display. It has less wearing parts, low maintenance cost, low noise, low energy consumption and cost saving. |
| Samsun SM421 parameters |
| Mounting speed: 21,000 CPH / Chip (IPC9850 benchmark) |
| 5,500 CPH / QFP (IPC9850 benchmark) |
| - Mounting degree: ±50μm@3σ/Chip, ±30μm@3σ/QFP |
| -Component range: Max, 0402 (01005) Chip ~ □55mm |
| 0603 (0201) Chip ~ □55mm (standard) |
| - PCB: |
| 460 (L) x 400 (W) mm |
| 510 (L) x 460 (W) mm (optional) |
| 610 (L) x 510 (W) mm (optional) |
| #NAME? |
| - Feeder: Max. 120 (8mm feeder) |
| - Feeder: Max. 60 (8mm feeder) SM421S |
| - Appearance size: 1650 (L) x 1690 (D) x 1485 (H) |

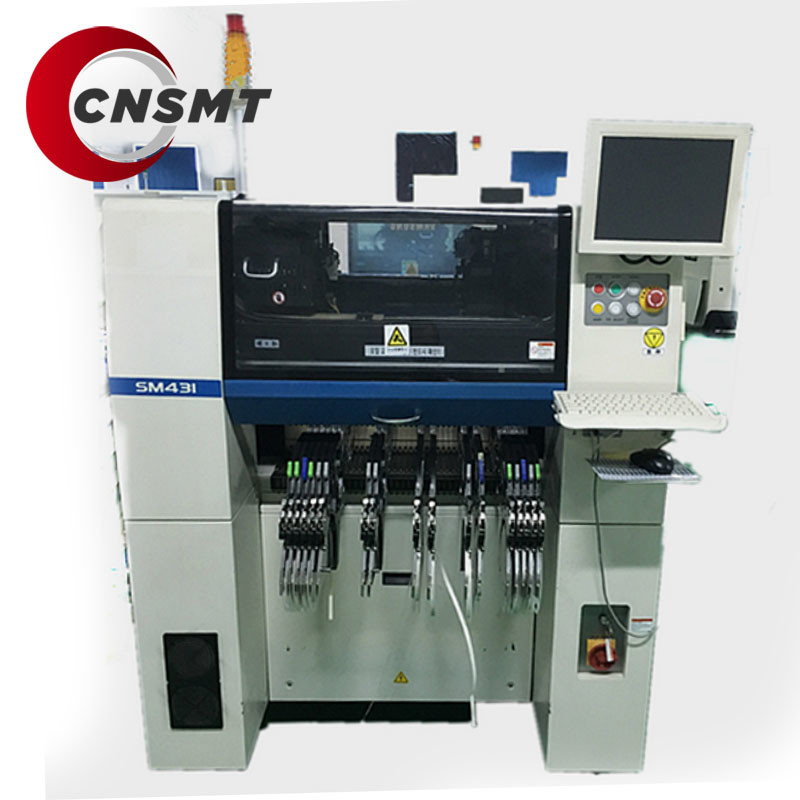

| Equipment Name: Samsung SM431, Samsung SM431 Mounter, Used Samsung SM431 Mounter |
| basic introduction |
| The Samsung Mounter SM431 can support a wide range of production modes in a wide range of applications, and has the world's fastest and most versatile surface mounter in its class. The wide range of components that can be mounted, the “Limitless EXpansion” features Standard configuration ensures high quality placement with a highly flexible feeder. |
| Samsung SM431 parameters |
| 1) Speed 55,000 CPH (best condition) |
| 2) Dual-arm Y-axis dual servo drive system |
| 3) A total of 16 placement heads with arms |
| High speed flight image recognition system |
| - Component adaptation range: 0402mm Chip to □12mm |
| - Mounting accuracy: ±50μm@3σ |
| 4) Apply new SM feeding system |
| #NAME? |
| #NAME? |
| #NAME? |
| 5) Dual transfer system |
| - Dual transfer mode: 330 x 250 (2 PCB) |
| - Single transfer mode: 460 x 460 (1PCB) |
| 6) Can hold 84 8mm feeders |
| 7) LCD display with front and rear operation |
| 8) Automatic nozzle changing device |
| 9) Windows XP operating system |
| 10) Safety cover |
|
11) Toolkit
|
