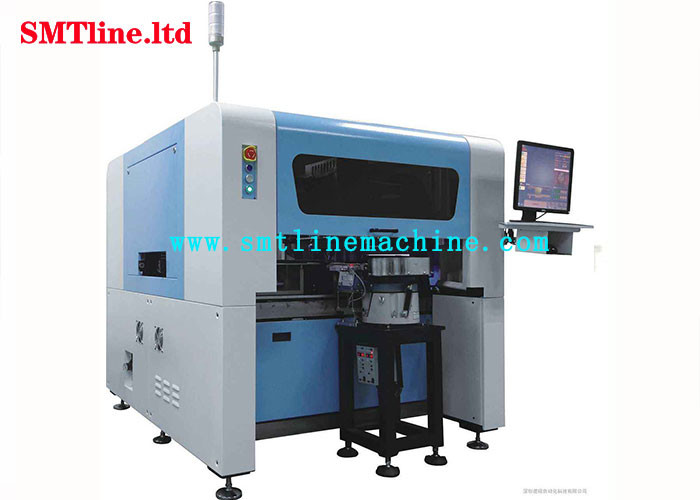

LED Line Universal Insertion Machine , Cnsmt Automatic Insertion Machine

LED Line Universal Insertion Machine , Cnsmt Automatic Insertion Machine

LED Line Universal Insertion Machine , Cnsmt Automatic Insertion Machine

Product Details:

Place of Origin: China
Brand Name: CNSMT
Certification: CE
Model Number: CNSMT-AI027

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: box
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Brand:: CNSMT MODEL: CNSMT-AI027
Weight:: 1100KG Lead Time:: IN Stork
Packing:: BOX CONdition: Working
P/N: Auto Insertion Machine PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed



Bulk LED Line Auto Insertion Machine AI used and new insert equipment 2 years warranty from cnsmt


Quick Detail


we supply all brand insert machine
Universal  and panasonic brand avk3 rh2 ...



Theoretical velocity 18000 / h (software system upgrade can be speeded up)
Insertion loss rate Less than 300PPM
Insertion direction The 0-360 degree increment is 1 degrees.
Lead span Double spaced 2.5mm/5.0mm/7.5mm or 3.5mm
Substrate size Minimum 50mm * 50mm, maximum 450mm x 450mm
Substrate thickness 0.79-2.36mm
Component specification The maximum height is 23mm, the maximum diameter is 10mm, and the maximum pin diameter is 0.8mm.
Component species Capacitors, transistors, triode, LED lights, button switches, resistance, connectors, coils, potentiometers, fuse seats, fuse wire and other vertical tape packaging materials.
Length of shear foot of element lead 1.5 + 0.3mm (short leg knife), 2 + 0.3mm (long sword).
Angle of elbow of element lead 10-35 degree (adjustable)
Number of material stations The 60 stop (the number of push to use stations) is optional (10-100 stations).
Machine size (long * width * high) Host size 1800mm x 1600mm x 2000mm
Material station size 500mm x 600mm x 760m
Machine weight 2000KG (40 station)
Use power 220V, AC (single phase) 50/60HZ, 2.0KVA/1.8KW (energy saving)
System protection Uninterrupted power supply (UPS) configuration can run for 15 minutes after power failure.
Use power 1.6KW (energy saving type)
Use of air pressure 0.6--0.8MPA
Gas consumption 0.3 cubic / minute
Use of ambient temperature 5-25 degrees
Machine noise 65 decibels
Hole position correction method Machine vision system, multi point MARK visual correction.
driving system AC servo, AC motor
Data input mode USB interface input (EXCEL document format)
Control system Chinese operation interface (WINDOWS system control platform) LCD monitor
Component density The 1mm distance between the components and the distance between the patch element and the hole can not be less than 3mm
Worktable operation mode Clockwise and counterclockwise direction
Transmission mode of PCB Manual / automatic optional


Feature



Product Name: smt Auto Insertion Machine
Used for: smt assembly full line
Warranty: 1 Year
Shipment by air
Delivery Time: 1-2Days
Our Main Market Whole of the world


Packaging details:foam and carton
Delivery time:Within 1~3 working days
Shipment
1. We ship to world wide
2. Most orders ship within 1~7days after payment
3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
4.100%T/T before shipment, after we shipped the goods, we will email you the shipping information

5.WE sell and buy used equipment long-term

Maintenance
Maintain the working stability and accuracy of the equipment, extend the life of the equipment, and maintain the high efficiency and high quality output of the equipment.
1, daily maintenance
Check whether the machine has loose, damaged or missing parts.
Check the indicator lights and keys are normal.
Check the filtration condition of the air filter cup and remove the water or sundries.
Check whether the pressure is 60-90PSI.
Clean, lubricate X, Y Guide (10# oil).
Check the tightening of the steering wheel of the rotating table.
Check the rectangle of the rotating table.
Clean and lubricate plug-in head tools and cylinder rods (with 5# oil).
Clean, check and lubricate the cutting point movement point (with 5# oil).
Clean the BEC lens with clean and soft cloth.
2. Zhou Baoyang
Check the filter net in the clean I/O box.
Check the height of the oil surface of the compressed air filter and the mist sprayer, and check the oil dropping rate of the mist sprayer (1 drops /3 minutes).
Clean and lubricate positioning system X, Y guide bar, lubricate clean guide bar sleeve (with 10# oil).
Clean and lubricate X, Y wire rod (with blue oil).
Clean, check, lubricate plug-in knives, drive rod connection points, shaft and other active parts (with 5# oil).
Check the wear of cutting shear knives, clean and lubricate the shear mechanism.
Check the correction ability of BEC.
