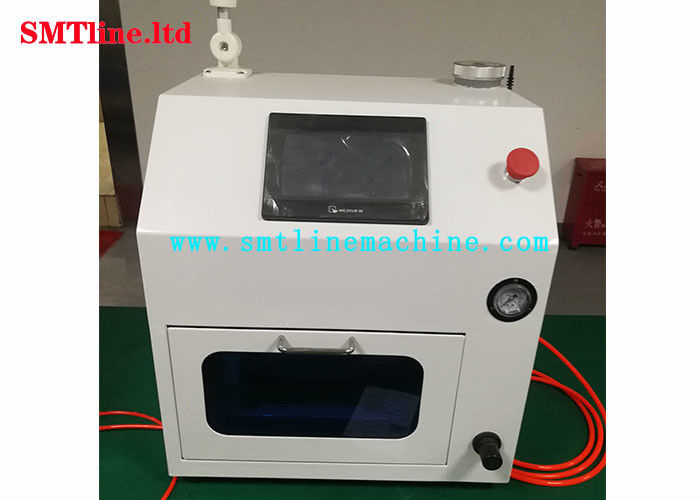

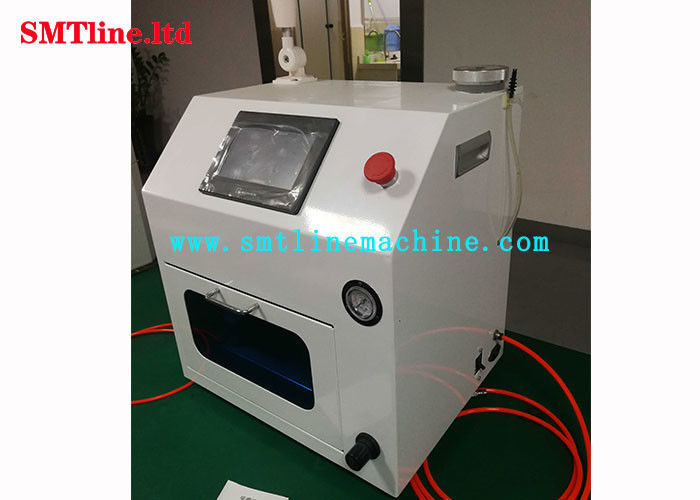

Nozzle Clean Kit SMT Line Machine , SMT Nozzle Cleanning Machine For Yamaha Fuji Juki

Nozzle Clean Kit SMT Line Machine , SMT Nozzle Cleanning Machine For Yamaha Fuji Juki
Nozzle Clean Kit SMT Line Machine , SMT Nozzle Cleanning Machine For Yamaha Fuji Juki Nozzle Clean Kit SMT Line Machine , SMT Nozzle Cleanning Machine For Yamaha Fuji Juki

Large Image :  Nozzle Clean Kit SMT Line Machine , SMT Nozzle Cleanning Machine For Yamaha Fuji Juki

Product Details:
Place of Origin: CHINA
Brand Name: YMH
Certification: CE
Model Number: SMT NOZZLE Cleanning machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: vacuum woodenbox
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/day
Detailed Product Description
Brand:: YMH MODEL: SMT NOZZLE Cleanning Machine
Weight:: 30KG Lead Time:: 1-2days
Packing:: Paper BOX PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed
Delivery Term: Exw Fob Cif...
High Light:

smt assembly equipment

,

smt assembly machine

FT8*4 FS2 8*4 Feeder KJK-M1156-00 Feeder fixed gasket KJK-M1155-00

FT8*4 FS2 8*4 Feeder KJK-M1156-00 Feeder fixed gasket KJK-M1155-00


Specification

Dimensions (L*W*H) 520MM×450MM×620 MM
Power supply (two-phase two-wire) 2P2W, 220VAC, 50/60Hz, 20A
Power requirement 250W
Air pressure 0.5 - 0.6MPa (for normal operation)
weight About 42KG
Total power 200W
control method Touch screen + PLC
Gas source Pure compressed air
Injection pressure 0.4 MPa
Air consumption 280NL/min or less
Liquid type Industrial pure water
Liquid consumption 300cc / hour
Liquid storage 800cc
Intake pipe / drain pipe ¢8 / ¢6
Nozzle tray specifications The default single row of 3 nozzles 10 rows of 30 nozzles
Cleaning nozzle specifications 0402, 0201, 01005, 03015
noise 35-60 dB



Product Name: nozzle cleaning machine
Product model: HN-NC207
Product use: The pulsed pressurized cleaning method is used to remove the dirt in the inner wall of the nozzle.
Working principle: Through the high-pressure jet technology, the fine water mist particles continuously pressurize the water to produce water mist of about 3-10um particles, and form a powerful pulsed kinetic energy jet to the nozzle at the speed of sound (V=360m/s). Up to 30 pulse frequencies per second, forming a continuous energy field above the nozzle to be cleaned, smashing the surface and internal dirt to achieve the purpose of cleaning.

Main features of this machine
○ The appearance adopts streamlined design, which is beautiful and generous;
○ Use 10 nozzles to clean 10 rows of 30 nozzles in order to achieve high efficiency and energy saving;
○ Full inspection window for easy maintenance and operation;
○ All parts in contact with water are made of 304 stainless steel, which is rust-proof, anti-corrosive, firm and stable;
○Humanized design, one button can be started and stopped on the external button;
○ Adopt touch screen + PLC distributed control, the performance is stable and reliable;
○ Easy to operate, friendly interface and can be switched between Chinese and English at any time.
○ With malfunction alarm and emergency braking system, with overload protection system;
○ Use environmentally friendly, non-polluting industrial purified water (HP value 5-7 soft water) or tap water;
○ Centralized collection of waste for easy maintenance.
