2D SPI From Cnsmt Solder Paste Inspection Smt Assembly Line Video Type Color Image REAL-Z-3000A

2D SPI From Cnsmt Solder Paste Inspection Smt Assembly Line Video Type Color Image REAL-Z-3000A
2D SPI From Cnsmt Solder Paste Inspection Smt Assembly Line Video Type Color Image REAL-Z-3000A 2D SPI From Cnsmt Solder Paste Inspection Smt Assembly Line Video Type Color Image REAL-Z-3000A

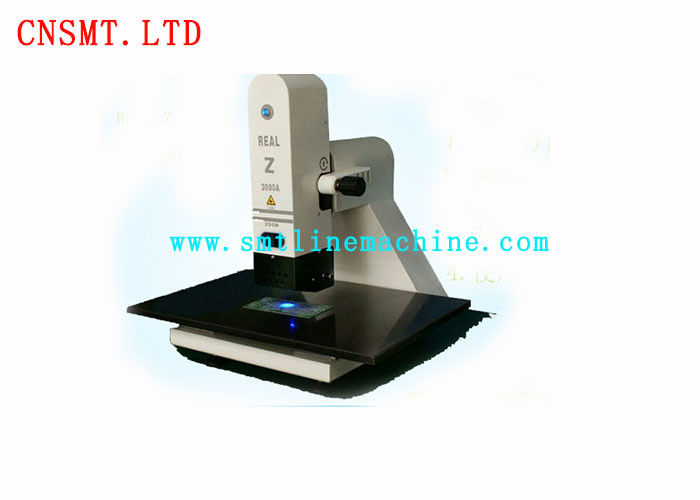

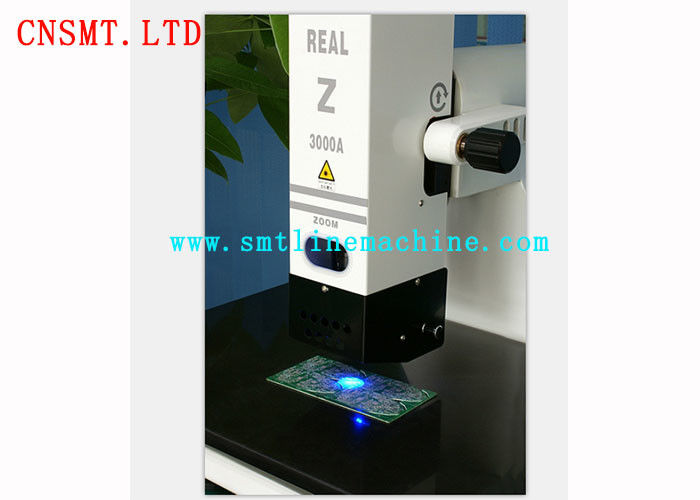

Large Image :  2D SPI From Cnsmt Solder Paste Inspection Smt Assembly Line Video Type Color Image REAL-Z-3000A

Product Details:
Place of Origin: CHINA
Brand Name: SMT
Certification: CE
Model Number: REAL-Z-3000A 2d
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: vacuum woodenbox
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/day
Detailed Product Description
Brand:: SMT MODEL: REAL-Z-3000A 2d
Weight:: 61kg Lead Time:: 1-2days
Packing:: BOX PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed
Delivery Term: Exw Fob Cif... SIZE: W600 X D550 X H651 Mm
High Light:

smt assembly equipment

,

smt assembly machine

REAL-Z-3000A 2D SPI From cnsmt Solder Paste Inspection Video type : color image

REAL-Z-3000A 2D SPI From cnsmt Solder Paste Inspection Video type : color image


Specification:



KHJ-MC101-01 BODY,FEEDER 1
1-1 KHJ-MC101-02 BODY,FEEDER 1 (2008/4/25) NG
1-2 KHJ-MC101-03 BODY,FEEDER
KHJ-MC201-00 BODY,FEEDER
KHJ-MC401-00 BODY,FEEDER
KHJ-MC501-00 BODY,FEEDER
KHJ-MC501-00 BODY,FEEDER

KHJ-MC110-00 MOTOR,FEED
KHJ-MC210-00 MOTOR, FEED
KHJ-MC510-00 MOTOR, FEED

KHJ-MC102-00 COVER,FEEDER SIDE
KHJ-MC202-00 COVER,FEEDER SIDE 1
KHJ-MC502-00 COVER,FEEDER

KHJ-MC10C-00 SEAL,MAIN LABEL
KHJ-MC20C-00 SEAL,MAIN LABEL
KHJ-MC40C-00 SEAL,MAIN LABEL
KHJ-MC50C-00 SEAL,MAIN LABEL
KHJ-MC60C-00 SEAL,MAIN LABEL
KHJ-MC70C-00 SEAL,MAIN LABEL
KHJ-MC80C-00 SEAL,MAIN LABEL

KHJ-MC10E-00 SCREW,FLAT HEXLOBE

KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC138-00 GEAR,DRIVEN 1
KHJ-MC238-00 GEAR,DRIVEN
KHJ-MC139-00 SHAFT,IDLE GEAR 1
KHJ-MC239-00 SHAFT,IDLE GEAR
KHJ-MC13C-00 PLATE,PUSHER GEAR
KHJ-MC23C-00 PLATE,PUSHER GEAR
KHJ-MC13D-00 SPRING,PUSHER PLATE
KHJ-MC13F-00 SCREW,STAD

KHJ-MC161-01 BOX,TOP TAPE 1
15-1 KHJ-MC161-02 BOX,TOP TAPE 1 (2008/5/14) NG
16 KHJ-MC162-01 COVER,TOP TAPE BOX 1
KHJ-MC261-00 BOX,TOP TAPE
KHJ-MC461-00 BOX,TOP TAPE
KHJ-MC561-00 BOX,TOP TAPE



KHJ-MC562-00 COVER,TOP TAPE BOX
16-1 KHJ-MC162-02 COVER,TOP TAPE BOX 1 (2008/5/14) NG
16-2 KHJ-MC162-03 COVER,TOP TAPE BOX
KHJ-MC262-00 COVER,TOP TAPE BOX

KHJ-MC166-00 BLOCK,P/O TOOTH 1 1
17-1 KHJ-MC166-01 BLOCK,P/O TOOTH 1 1 (2008/4/25) NG
17-2 KHJ-MC166-02 BLOCK,P/O TOOTH 1
KHJ-MC266-00 BLOCK,P/O TOOTH 1
KHJ-MC466-00 BLOCK,P/O TOOTH 1
KHJ-MC566-00 BLOCK,P/O TOOTH 1
KHJ-MC666-00 BLOCK,P/O TOOTH 1
KHJ-MC766-00 BLOCK,P/O TOOTH 1
KHJ-MC866-00 BLOCK,P/O TOOTH 1

KHJ-MC16F-00 SCREW,FLAT HEAD TAP.
KHJ-MC16J-00 SCREW,FLAT HEAD
90166-02JA03 SCREW,PAN HEAD
98707-03006 SCREW,FLAT HEAD
90990-08J021 SCREW,STAD

91317-03006 BOLT HEX.SOCKET HEAD 3
91317-03008 BOLT HEX.SOCKET HEAD 2
91312-03010 BOLT HEX.SOCKET HEAD



KGT-M1301-A0X COVER 1 ASSY 1
2 KGT-M1302-A0X COVER 2 ASSY 1
3 KGT-M1303-A0X COVER 3 ASSY 1
4 KGT-M1304-A0X COVER 4 ASSY 1
5 KGT-M1305-00X COVER 5 2
6 KGT-M1306-A0X COVER 6 ASSY 1
7 KGT-M1307-A0X COVER 7 ASSY 1
8 KGT-M1308-A0X COVER 8 ASSY 1
9 KGT-M1309-00X COVER 9-1 2
10 KGT-M130A-00X COVER 9-2 2
11 KV7-M1340-01X BRACKET 1, COVER 9 2
12 KV7-M1341-02X BRACKET 2, COVER 9 2
13 KGT-M1342-00X BRACKET 3, COVER 9 2
14 KGT-M1343-00X BRACKET 4, COVER 9 2
15 KV7-M1349-00X PLATE 2, NUT 4
16 K93-M1392-00X SPACER (TM-180-303) 8
17 KH2-M1324-00X GRIP 4
18 KM0-M1331-01X BRACKET GAS DAMPER 4
19 KL3-M1348-10X GAS SPRING 4
20 KM0-M1346-00X SHOULDER, BOLT 8
21 KL0-M1373-01X BRACKET 1 SCHMEASAL 2
22 KL0-M1374-00X PLATE 1 SCHMESAL 2
23 91317-04008 BOLT HEX. SOCKET HEAD 12
24 91317-04010 BOLT HEX. SOCKET HEAD 8
25 91317-05014 BOLT HEX. SOCKET HEAD 8
26 K16-90101-08X BOLT: TP-M4X8 14
27 K16-90101-12X BOLT: TP-M4X12 18
28 KV7-M1317-01X COVER 17 4
29 KGA-M1318-00X COVER 18 2
30 KM0-M1335-00X BRACKET 1 GATE COVER 4
31 KGT-M1336-00X BKT CORNER L, BACK 1
32 KV7-M1337-00X BKT CORNER L, FRONT 1
33 KV7-M1339-00X BKT CORNER L, FRONT 1
34 K46-M1374-10X HINGE 2 6
35 KGT-M1356-00X PLATE 1, JOINT 2
36 KGT-M1357-00X PLATE 2, JOINT 2
37 KL3-M1381-02X PLATE 1 KEY BOARD 2
38 KGT-M1382-00X PLATE 2 KEY BOARD 2
39 98904-04006 SCREW BINDING HEAD 200
40 KGT-M130B-A0X COVER, SIDE 1 ASSY 2
41 KGT-M130C-A0X COVER, SIDE 2 ASSY 2
42 KGT-M1329-L0X COVER 29, L 2
43 KGT-M1329-R0X COVER 29, R 2
44 KW8-M1386-00X BRACKET, MAGNET 4
45 KJ9-M1354-10X MG. CATCH: TL272-2 4
46 KV7-M1350-00X CAP, PATLIGHT 1
47 KV7-M1391-10X PLUG 4
48 KW7-M13D7-00X SEAL 2 (YAMAHA) 1
49 90K41-000190 WARNING SEAL (1) 2
50 90K41-000230 WARNING SEAL (2) 2
51 KM0-M531G-00X PANEL PLUG 2
52 KV8-M3759-00X BLIND BUSH 2
53 KGA-M13B9-00X HOOK 1
54 KV7-M8880-00X BRUSH, FEEDER 1
55 KGT-M13D6-00X SEAL 1 (YG200)

Second, product features

1, with a fully enclosed precision grating as a measurement reference, instant calibration measurement results, full closed-loop feedback, high precision. The measurement system does not depend on a wear-resistant screw motor, which has good precision retention and low failure rate.
2, using the relative measurement method to eliminate the error of PCB deformation, can compensate for the error caused by the thickness of green oil and copper foil.
3, large measuring range, can directly measure the double panel, can also measure the depth of the V-Cut groove other than the solder paste, components, BGA solder ball height.
4, granite measuring platform, wear-resistant, not easy to deform, no static electricity, can measure the PCB area.
5, integrated solid base, good rigidity. Adjustable level shock absorber feet.
6, large-scale stepless zoom optical lens, high magnification, suitable for large pads to 0201, 01005, 0.2mm fine pitch IC, BGA, CSP, etc., flexibility.
7. When the measuring laser beam is applied to the surface to be measured, the optical lens automatically focuses on the surface to be measured. The focal length automatically remains the same after zooming.
8, laser generator with automatic standby protection, life cycle several times. Laser brightness adjustment is convenient.
9, color camera, easy to identify the various features on the PCB. Can take pictures and videos. Hot swappable USB interface.
10, long-life LED lighting, color can be switched to PCB board measurement of various colors. Lighting brightness adjustment is convenient.
11. Monitor and analyze several production lines at the same time. It has group management and one-button switching function of the tested products. Each production line is counted separately. Each product can have independent judgment standards and option settings, and it can be judged automatically or not.
12. Real-time refresh statistical parameters and charts, with automatic calculation functions such as average value, standard deviation, Cpk, non-performing rate, distribution map, trend chart, X bar-R control chart, flexible setting of statistical time period, automatic generation and printing Complete report.
13. Optional measurement of length, width, angle, ratio, side length, area, coverage, volume, weight and automatic judgment.
14. Raw data can be exported in Excel or text format.
15, automatic save function, suddenly power off without losing data. With a general-purpose computer, the installation is easy without the need to change the hardware.
16. The operation and software interface is simple and the measurement speed is fast.

Third, the product parameters

1, measurement principle: relative method, scale reference
2. Resolution: 0.001 mm
3. Absolute accuracy: ≤0.003%
4, repeatability: ≤0.01%
5, green oil and copper foil error compensation: support
6, PCB deformation error elimination: support
7, range: 30 mm
8, optical magnification: 50 - 360X continuous stepless zoom
9, field of view: 10 x 7.5 - 1.2 x 0.8 mm on-demand adjustment
10, the maximum can accommodate: PCB 400 x 600 mm
11, the smallest measurable components: 0201, 01005, 0.2mm fine pitch IC, BGA / CSP
12, lighting color: white, green, blue and fully off can be switched
13, the life of the lighting source: ≥ 1 million hours
14, laser wavelength and power: 650nm, micro power <5mW
16, laser life: 5 - 10 times longer than lasers without standby function
17, video output interface: USB
18, video resolution: 640 x 480
19, the total video pixels: 300,000
20, video type: color image
21, multi-production line sharing: support
22, SPC statistical function: bad judgment, average, standard deviation, Cpk, non-performing rate, distribution map, trend chart, X bar-R control chart, etc.
23, power and power consumption: power supply through the USB interface, 2.5W low power consumption
24, hot plugging: support
25, weight and shape: 60kg, W600 x D550 x H650 mm
26, hardware: CPU: Intel P4 1.4G or more 2G or more recommended) Memory: 256M or more 512M or more recommended) Port: 1 or more COM port, 2 or more USB2.0 interface graphics card: mainstream brand, and Direct9, 32M or more Memory

27, operating system: Microsoft Windows XP
